Setting Up a Palm Kernel Oil Processing Line in Ghana: How to Choose the Right Supplier
FAQ / Chat on line / Give me a price / Date: October 28, 2026
Setting up a palm kernel oil processing line in Ghana requires more than choosing an oil press. The right equipment configuration depends on your raw material, target capacity, investment budget, and available installation support. Choosing a supplier who can match equipment to your actual production needs helps avoid unnecessary investment and makes future expansion easier.
Glory Oiltech (Henan Glory) supplies palm kernel oil processing equipment and complete production line solutions. We help customers evaluate the required processing stages, select suitable machinery, and plan installation support according to their project conditions.

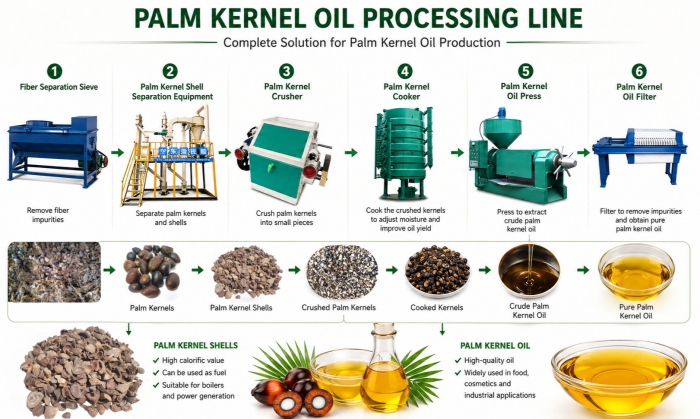

Palm kernel oil processing machine from Glory Oiltech
What Palm Kernel Oil Processing Equipment Can We Supply?
For small and medium-sized palm kernel oil projects, the equipment list should be determined by the condition of the incoming palm kernels and the processing steps required. We offer individual machines that can be selected according to the project rather than requiring every customer to purchase a complete set of equipment from the beginning.
The following specifications provide a starting point for evaluating our equipment options.
| Equipment | Capacity | Power | Key specification |
|---|---|---|---|
| Palm kernel crusher | 500 kg/h | 7.5 kW | 650 r/min |
| Vertical cooker | 1–6.5 t/h | 10–45 kW | Shaft speed: 24–33 r/min; Heating area: 14.6–48 m² |
| Palm kernel oil press | 500 kg/h | 45 kW | 40–44 r/min |
The crusher reduces palm kernels into smaller pieces to prepare them for subsequent conditioning and pressing. The vertical cooker adjusts the kernels' processing conditions before oil extraction, while the screw press mechanically extracts oil from the prepared material. A filtration unit can be added after pressing to remove suspended solids from the crude oil.

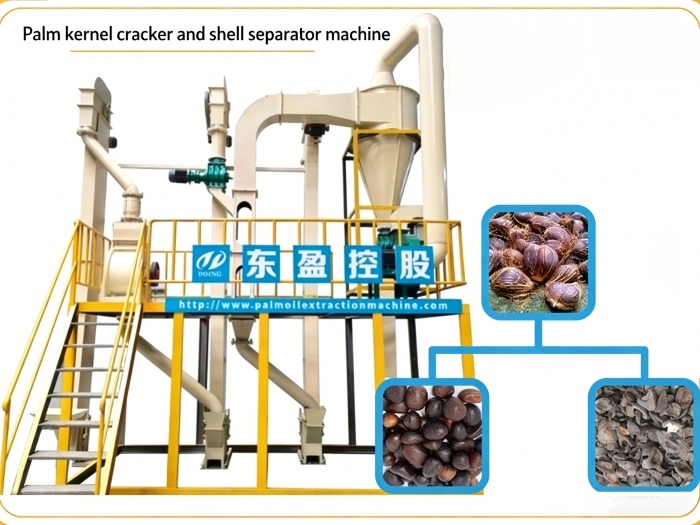

Palm kernel shell cracker and separator
For customers processing palm nuts that still contain shells, we also provide an automated palm kernel cracking and separation system. Depending on the configuration, the system can integrate magnetic separation, size grading, cracking, and kernel-shell separation. These stages help remove metal impurities, classify raw materials before cracking, and separate kernels from shells before oil extraction.
How Do We Configure a Line for Your Raw Materials and Budget?
The first step is to determine whether your raw material is already-shelled palm kernels or palm nuts that still require cracking and separation. If you purchase shelled kernels, the line can focus on crushing, cooking where required, pressing, and oil filtration. If you process shell-on nuts, the front end must also include suitable cracking and kernel-shell separation equipment.
For projects requiring higher automation, our integrated cracking and separation system combines multiple processing stages to reduce manual handling and prepare the kernels for pressing. However, a complete system may not be the most economical starting point for every small mill. For customers with limited initial investment, a simpler palm kernel cracker may be considered, depending on the raw material and the required level of separation.

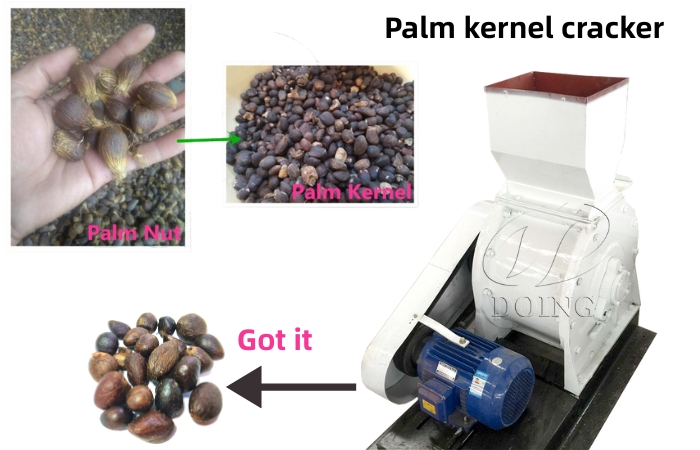

Palm kernel cracker
Palm Kernel Cracker Specifications from Glory Oiltech
| Parameter | Specification |
|---|---|
| Processing Capacity | 1–2 TPH |
| Motor Power | 7.5 kW |
| Rotational Speed | 950–1,000 r/min |
| Weight | 560 kg |
| Dimensions (L × W × H) | 1,200 × 700 × 1,200 mm |
Our Ghana project demonstrates this approach. For a customer starting on a small scale, we adjusted the original proposal and reduced the palm kernel oil processing configuration to two core machines: a palm kernel sheller and a palm kernel oil press. Instead of requiring the customer to purchase a complete processing system from the beginning, we matched the equipment to the customer's initial production needs and investment capacity.
Can We Provide Installation and Commissioning Support in Ghana?
Yes. We can dispatch engineers to the customer's site to guide equipment installation, commissioning, and operator training. The customer is responsible for the engineer's round-trip airfare, accommodation, meals, visa expenses, and wages during the commissioning period. These arrangements should be confirmed before the order is finalized.

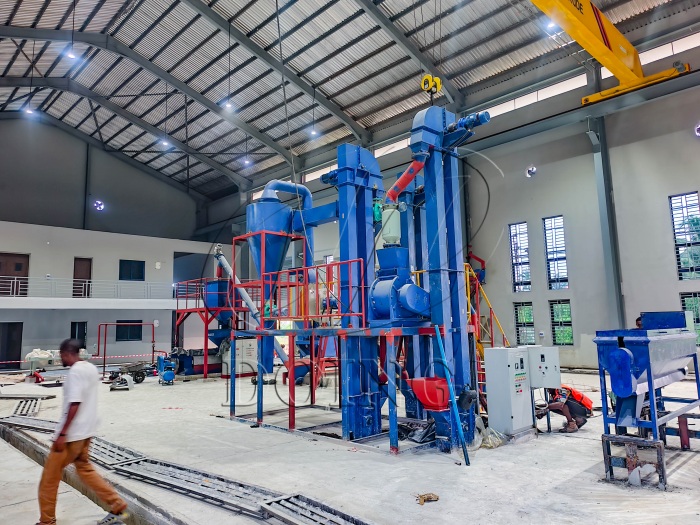

Palm kernel oil processing project
Remote installation support is also available where appropriate. For example, in our Ghana project, the equipment was test-run before shipment, and the customer received installation manuals and operating instructions. The customer's workers completed installation with online video guidance from our team.
What Does Our Ghana Project Experience Show?
In April 2022, we supplied a small-scale palm oil and palm kernel oil mill project in Ghana. The project included a 500 kg/h palm oil pressing line and a 500 kg/h palm kernel oil pressing line.
The customer was at an early stage of development and considered the initial proposal too large. We adjusted the equipment plan to better match the customer's investment capacity. For the palm kernel oil line, the original five-machine configuration was reduced to two core machines: a palm kernel sheller and a palm kernel oil press. The equipment was test-run before shipment, and installation was completed with manuals and remote video guidance.

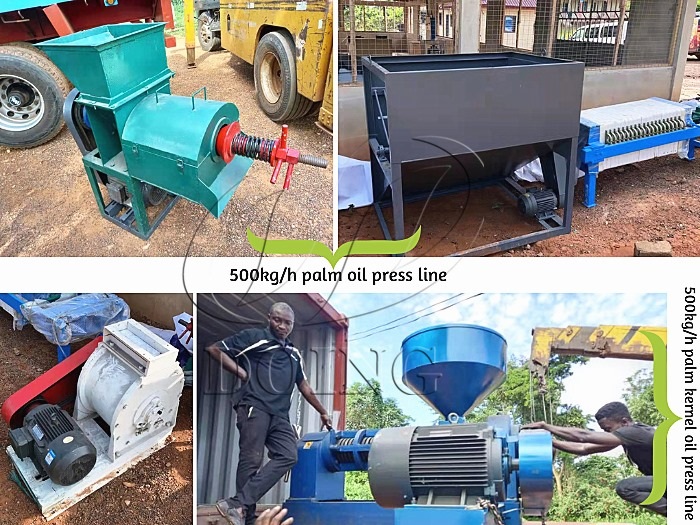

Small-scale palm oil and palm kernel oil mill project in Ghana
This case shows why a suitable supplier should evaluate the customer's actual needs rather than automatically recommend a complete, high-configuration line.
Project reference: Small Scale Palm Oil and Palm Kernel Oil Mill Plant Project in Ghana
There is also a follow-up example from Ghana. In March 2023, a farmer who had previously purchased a palm kernel oil press placed another order for an automated 2–3 TPH palm kernel cracker and separator system. This indicates that as a client's business grows, there may be a need for equipment upgrades or the addition of new units—requirements that call for a manufacturer capable of providing comprehensive solutions for such production line equipment.
Related reference: Palm Kernel Cracker and Separating Machine Ordered by Ghanaian Customer
What Information Should You Provide for a Project Proposal?
To help us recommend a suitable configuration, please share the following details:
Target capacity: How many kilograms or tons of palm kernels do you want to process per hour or per day?
Raw material: Are you buying shelled palm kernels or processing palm nuts with shells?
Required processing stages: Do you need shelling, cracking and separation, crushing, cooking, pressing, or oil filtration?
Operating conditions: How many hours per day will the line operate, and what power supply is available?
Installation preference: Do you prefer remote guidance or on-site engineer support?
Budget and expansion plans: What is your initial investment range, and do you plan to expand capacity later?
Frequently Asked Questions
What raw-material qualities should I check before specifying a palm kernel oil line?
Check the kernel moisture and the level of impurities such as shell, fiber and grit; also check the free fatty acid (FFA) level of the resulting oil. For our palm kernel pressing process, the recommended kernel moisture before pressing is generally 8%–10%. Excess moisture can reduce oil yield and make cake quality less stable, while overly dry kernels may cause smoke, blockage and faster wear of the screw and pressing chamber. A test with your own raw material helps confirm the suitable equipment configuration.
How should I plan a palm kernel oil investment in stages instead of buying everything at once?
Start with the equipment required by your raw material. If you buy shelled kernels, the core line can include crushing, cooking where required, pressing and oil filtration. If you process whole palm nuts, cracking and kernel-shell separation must come before the kernel pressing stages. You can add more automation or other equipment as your daily throughput and raw-material supply grow. Leave enough space and power capacity for planned upgrades.
Beyond the purchase price, what running costs should I budget for on a palm kernel oil press?
Budget for wear parts as well as the purchase price. For the press, ask about the service life and replacement cost of the screw and pressing chamber components; also account for power, labour and routine maintenance. Before ordering, request a wear-parts list with prices and recommended replacement intervals, and keep critical spare parts available locally to reduce downtime.
Is it cheaper to buy shelled kernels or to process whole nuts with our own cracking line?
It depends on the spread between shelled-kernel and whole-nut prices, your labour cost, and whether your volume can absorb the cracker and separator. Decide on four tests: (1) is shelled kernel consistently available at a price close enough to whole nuts that the difference cannot cover your cracking cost? (2) is whole-nut supply steady, or seasonal and patchy? (3) can you staff and maintain a cracker reliably? (4) is your throughput large enough to spread the cracking investment? Small or irregular volume points to buying shelled kernels; a wide, stable price gap plus steady whole-nut supply points to building your own cracking and separation stage.
Ready to Build Your Palm Kernel Oil Line with Glory Oiltech?
Choosing the right palm kernel oil processing line in Ghana starts with understanding your raw material, required capacity, and investment plan. You may need only a sheller and an oil press at the beginning, or a more automated cracking and separation system as your operation grows. The most suitable solution is the one that meets your current needs without forcing unnecessary investment.
Contact Glory Oiltech with your raw material, target capacity, and budget to discuss a suitable palm kernel oil processing line for your project in Ghana.
