Palm Kernel Oil Processing Guide: Oil Extraction, Uses, and By-product Utilization

When you invest in a palm kernel oil processing plant, you are not just buying equipment — you are building an entire value chain. From the moment palm kernels enter your facility, every stage of processing creates value: the oil itself commands a strong market price, the leftover cake feeds livestock across the region, and the shells can power your boilers or generate electricity. The question is not whether palm kernel processing is profitable — it is whether your processing line is designed to capture all of that value.

This guide covers the four areas that matter most to anyone planning a palm kernel oil project: how oil extraction actually works (pressing versus solvent extraction), where the market is buying palm kernel oil today, how palm kernel by-product utilization can create additional revenue streams, and — perhaps most importantly — how to choose a processing line that fits your scale, your raw materials, and your growth plans.

Palm Kernel Oil Extraction: Pressing vs. Solvent Extraction

Palm kernel oil can be extracted using two established methods. Both start with the same pretreatment — cleaning, cracking to separate the shell from the kernel, crushing, and cooking — but diverge at the extraction stage. Understanding the difference helps you decide which path aligns with your capacity and budget.

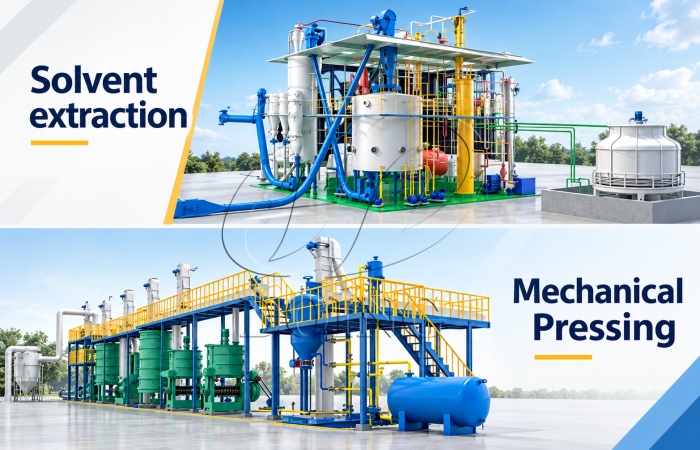

Palm kernel oil extraction process

Mechanical Pressing. In this method, cooked palm kernel particles are fed into a palm kernel expeller, where mechanical pressure squeezes the oil out through barrel slots. The crude oil is then filtered and ready for further refining. Pressing is straightforward, requires no chemicals, and is the most common choice for small-to-medium operations. The trade-off is that the resulting press cake still retains a noticeable amount of oil — typically around 6% to 10% — which represents unrecovered value.

Solvent Extraction. Palm kernel solvent extraction takes oil recovery further. After an initial pre-pressing step, the residual cake is soaked in a food-grade solvent (n-hexane) that dissolves the remaining oil. The solvent-oil mixture (miscella) is then processed through evaporation and stripping to separate pure oil from the solvent, which is recovered and recycled. Solvent extraction can reduce the residual oil in the final meal to 1% or below — a significant improvement over pressing alone. The method requires more complex equipment and explosion-proof facility design, which is why it is typically adopted by medium-to-large operations using palm kernel solvent extraction plants.

Palm Kernel Oil Uses: Where the Market Is Buying

Palm kernel oil is rich in saturated fats — primarily lauric acid and myristic acid — giving it a high smoke point, thermal stability, and a neutral flavor. These properties open doors to four major market segments:

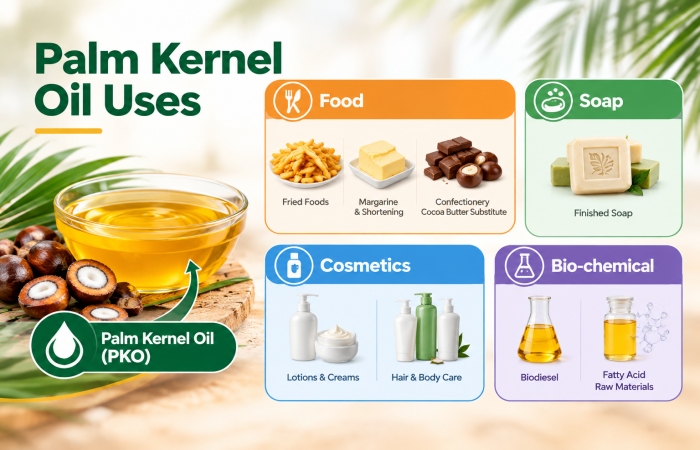

Main application fields of palm kernel oil

Food Industry. PKO is widely used for frying, baking, and margarine production. Its stability at high temperatures makes it a preferred cooking oil in West African countries like Nigeria and Ghana, where traditional frying methods are commonplace. It also serves as a feedstock for cocoa butter equivalents in confectionery manufacturing.

Soap Manufacturing. PKO creates hard, fast-lathering soaps that are fully biodegradable. Compared to coconut oil, palm kernel oil is often more economical and readily available in palm-producing regions, making it attractive for both large soap factories and small-scale artisanal producers.

Cosmetics and Personal Care. The oil's emollient properties make it a common ingredient in lotions, creams, shampoos, and hair care products. Its moisturizing qualities appeal to formulations targeting dry or sensitive skin, and African producers are increasingly using PKO in organic and eco-friendly skincare lines.

Biofuels and Oleochemicals. PKO can be converted into biodiesel through transesterification, offering a renewable alternative to fossil fuels. It is also a key raw material for fatty acids, glycerol, and other oleochemicals used in detergents and pharmaceuticals. Countries like Indonesia and Malaysia are leading this initiative, and African nations with palm resources are well positioned to follow suit.

Palm Kernel By-product Utilization: Turning Shells and Cake into Revenue

After oil extraction, two valuable by-products emerge from the process: palm kernel cake (PKC), the solid residue rich in protein and fiber, and palm kernel shells, the hard outer covering removed during the cracking and separation stage. Together, these by-products can generate significant additional revenue or reduce your operating costs. Understanding the various palm kernel cake uses is essential to maximizing that revenue.

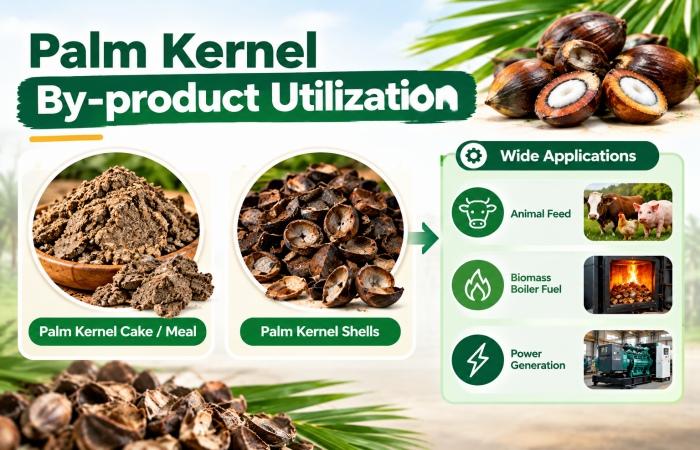

Uses of palm kernel by-products

Animal Feed. PKC is widely used as a feed ingredient for ruminants such as cattle, where its fiber content supports rumen function. It is also incorporated into poultry feed formulations when used in appropriate ratios. Heat and steam processing help mitigate anti-nutritional factors like tannins and phytates, improving protein digestibility and overall nutrient availability. In Nigeria and Ghana, PKC is commonly mixed with other feed components to optimize nutritional value and enhance livestock growth rates.

Biomass Fuel and Energy. Palm kernel shells are an excellent high-calorific biomass fuel. In a well-designed mill, shells from the cracking and separation stage are fed directly into the boiler to generate process steam, making the plant energy-self-sufficient. Shell-based biomass can also feed biogas generation systems, turning waste into electricity. For mills that source kernels already cracked but still contain shell fragments, the shell content can be separated and sold as fuel to nearby brick kilns or cement plants, creating an additional income stream. Beyond their role as boiler fuel, palm kernel shell uses also extend to biogas generation and sale to industrial buyers.

Pre-Pressed Cake Solvent Extraction. If your plant uses mechanical pressing only, the resulting cake still contains residual oil that represents unrecovered revenue. You have two practical options: you can send the press cake to a palm kernel solvent extraction plant, where the remaining oil is recovered through chemical extraction — turning what would be a low-value by-product into a steady income stream. Alternatively, if your scale justifies it, you can integrate solvent extraction into your own operation, further boosting your total oil yield. Either way, the cake is no longer waste — it is a second revenue line.

How to Choose the Right Palm Kernel Processing Line

Choosing the right processing line is the decision that shapes everything else — your oil yield, your operating costs, your by-product quality, and ultimately your project's profitability. Here are the key considerations, and how the right equipment partner can make the difference.

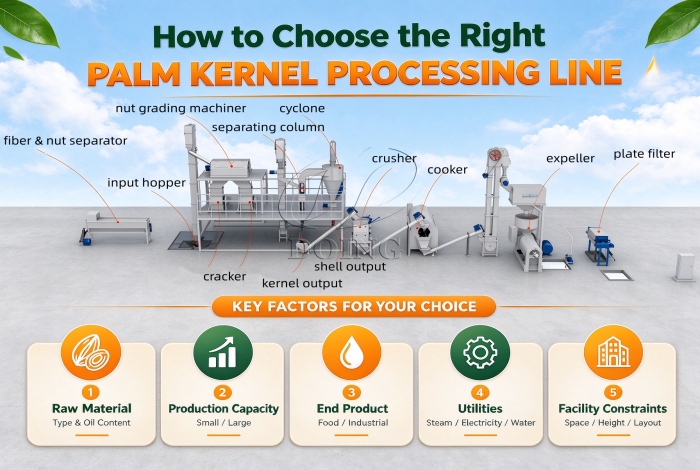

Choosing the right palm kernel oil processing line

1. Match Capacity to Your Raw Material Supply. Your daily processing capacity should be driven by your guaranteed kernel supply, not the other way around. Glory Oiltech (Henan Glory) designs processing lines for every scale — from compact 1–20 t/d plants that include a shell cracker and separator, crusher, drum cooker, oil presser, and plate filter, to fully integrated 20–600 t/d solvent extraction mills. Starting with the right capacity means you avoid the two most common mistakes: overbuilding before the market is ready, or underbuilding and having to tear down and replace equipment within a few years.

2. Prioritize Equipment That Handles Palm Kernel's Unique Challenges. Not all oilseeds are created equal — palm kernels are exceptionally hard and fibrous, which means generic crushing and pressing equipment will wear out quickly and deliver inconsistent results. Glory Oiltech's palm kernel oil pressers are engineered specifically for this challenge: the pressing screw is crafted from 2Cr13 wear-resistant material, and the units are paired with heavy-duty motors built for continuous operation. Our shell cracker and separator achieves high separation efficiency while minimizing kernel breakage — a detail that matters enormously for downstream quality.

3. Work with a Supplier Who Covers Both Pressing and Solvent Extraction. Glory Oiltech supplies palm kernel processing lines based on mechanical pressing, and we also design and provide palm kernel solvent extraction plants for customers who want to recover more oil from press cake or expand their capacity later. Since we already know your kernel quality, your process and setup, your output targets and your site conditions, we can plan the extraction stage around your existing line instead of forcing you to rebuild everything from scratch. For customers, this usually means smoother communication, fewer compatibility problems between sections, and a clearer expansion path from a pressing plant to a full processing plant.

4. Don't Overlook After-Sales Support and Project Experience. Building a palm kernel oil plant is a significant investment, and the equipment supplier you choose will be your partner for decades. Look for a company with proven project experience in regions similar to yours — one that has delivered complete turnkey solutions across Africa and beyond, with overseas warehouses and service teams that can respond quickly when you need them. Glory Oiltech has deployed palm kernel oil processing plants across Nigeria, Kenya, Uganda, Ghana and other palm-producing regions, providing everything from initial site planning and 3D process design to manufacturing, overseas installation, and long-term technical support.

FAQ

Ready to Build Your Palm Kernel Oil Processing Plant?

Whether you are planning a small 5 t/d pressing operation or a large 60 t/d integrated pressing-plus-solvent-extraction plant, getting the processing line right from the start determines your oil yield, your by-product revenue, and your project's payback timeline. Glory Oiltech provides customized palm kernel oil processing solutions — from kernel cracking and shell separation through pressing, solvent extraction, and oil filtration — engineered to your specific raw material, capacity, and budget. Contact us today for a free consultation.
